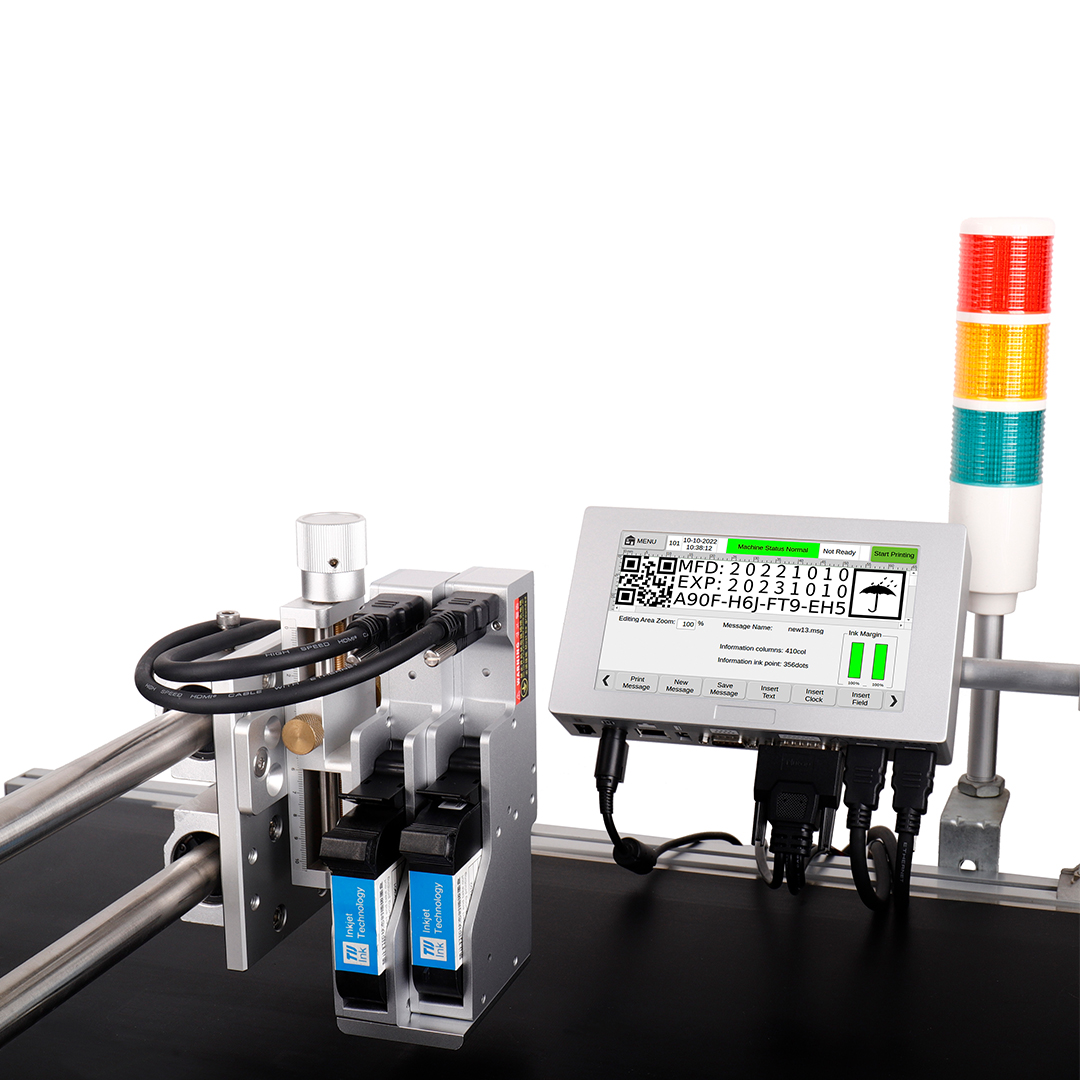

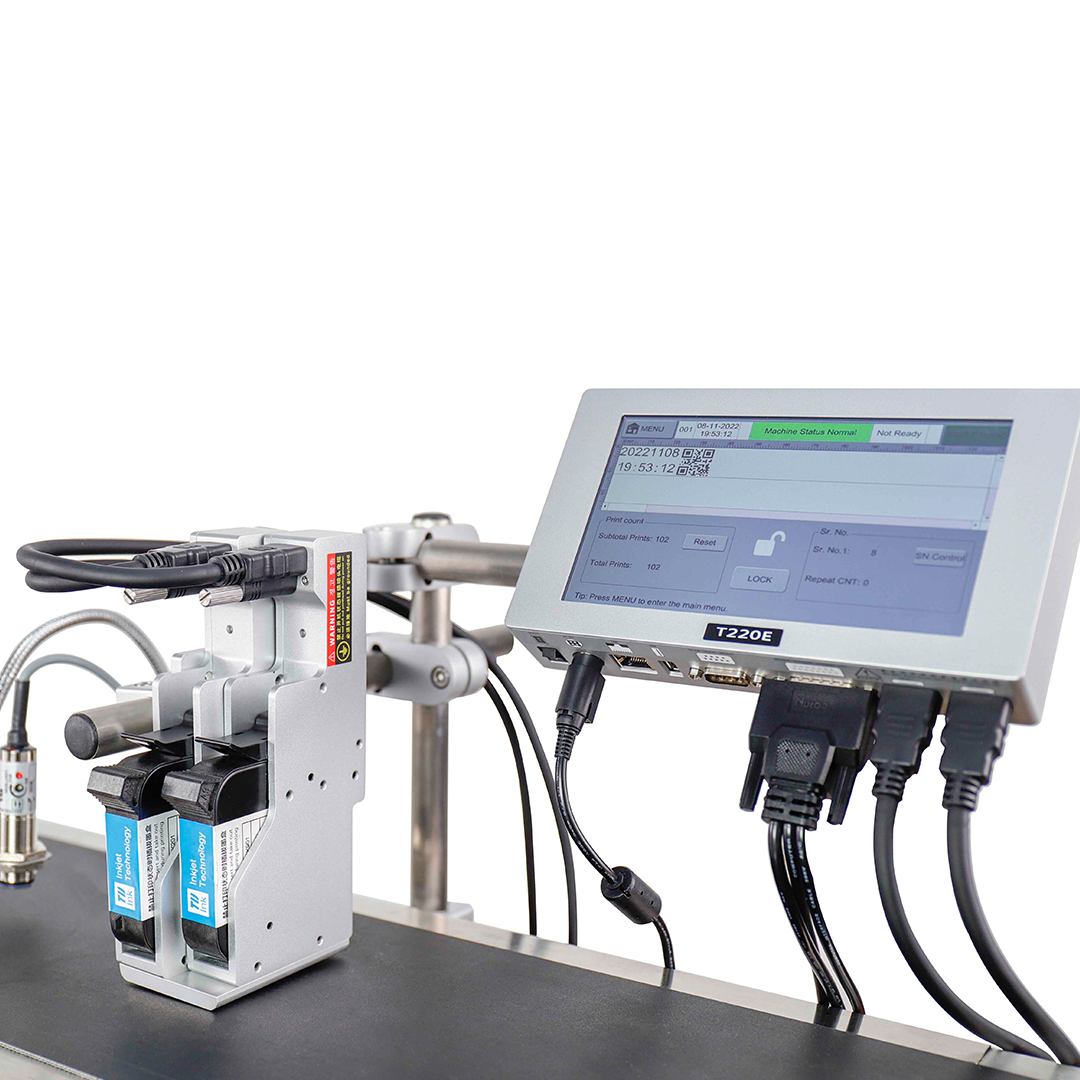

T220E High Speed Variable Date Printing System
คำอธิบาย
Network remote centralized management
Production line alarm light control
Calculate printing costs in real time
Wireless keyboard and mouse control
Anti-counterfeiting trace data printing
Printing speed up to 406m/min
Lighter and thinner more flexible
Printing Parameters
Print resolution:
Up to 600×600 DPI
Number of printheads:
1/2
Print height:
1-12.7mm/1-25.4mm
Cartridge chip:
RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount
Ink color:
black, white, red, yellow, blue, green, invisible, UV
Ink type:
42ml food grade, water-based, oil-based, weak solvent, solvent ink cartridge, large capacity ink continuous supply system
Printing content:
Multi-language, GS1 code, dynamic traceability R codes, barcodes, graphics, serial numbers, dates, shifts, counters, variable databases, etc
Printing material:
Cartons, plastics, metals, plates, pipes, stones, wires & cables, electronic components, auto parts, industrial gift packaging, pharmaceutical, cosmetic, food packaging
Print speed:
Up to 406m/min
Machine Parameters
Operating system:
Embedded Linux operating system
Data interface:
USB, RS232, TCP/IP net port
External interface:
Optical sensor, encoder, alarm control output, printhead connection port, flip and reverse control
Printhead installation:
Separate printhead installation, optional dual printheads can be spliced or used separately
Machine material:
Industrial grade standard protective body (aerospace grade aluminum, industrial-grade stainless steel)
Working environment:
Temperature 0-45℃/Humidity 30-70%Rh
Machine specifications:

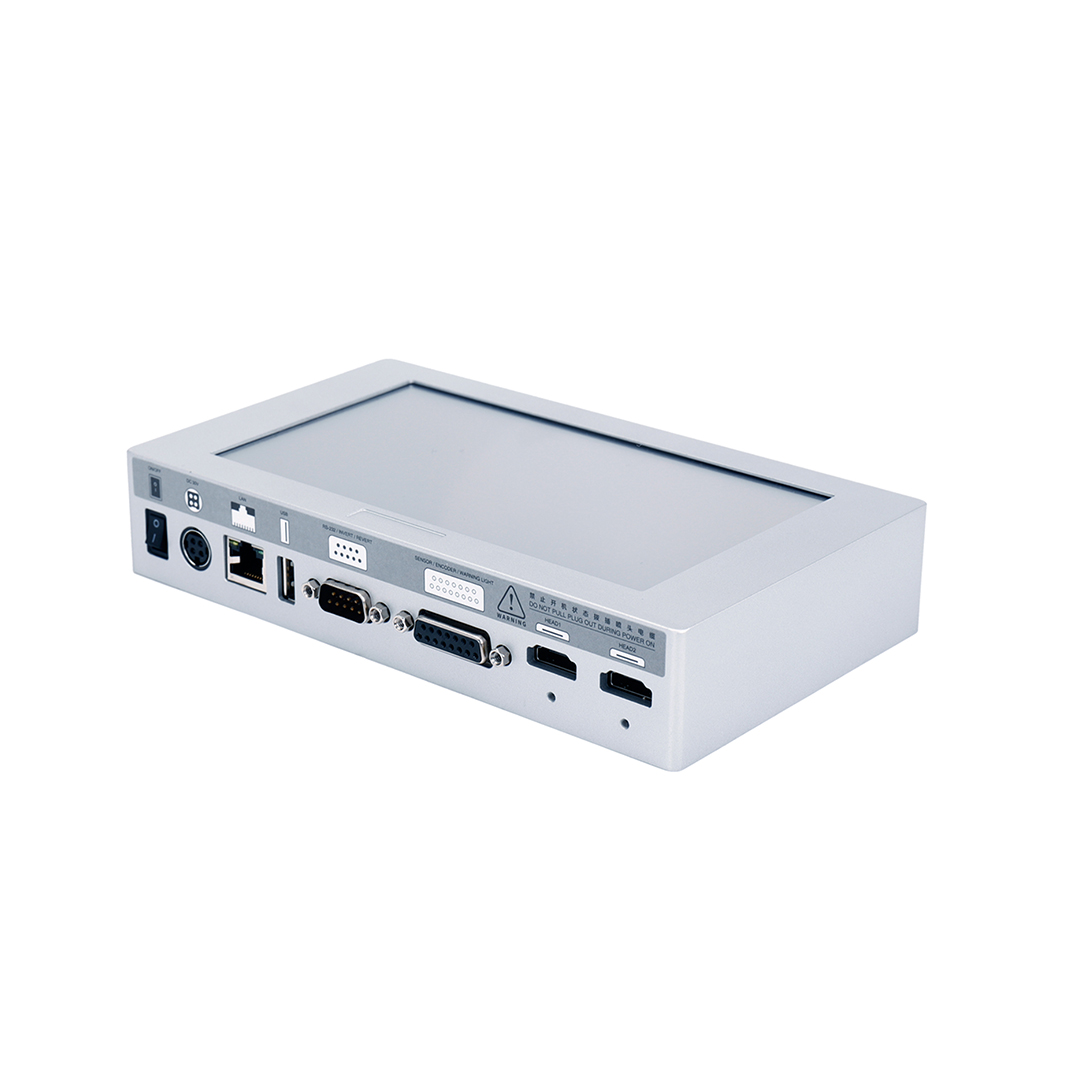

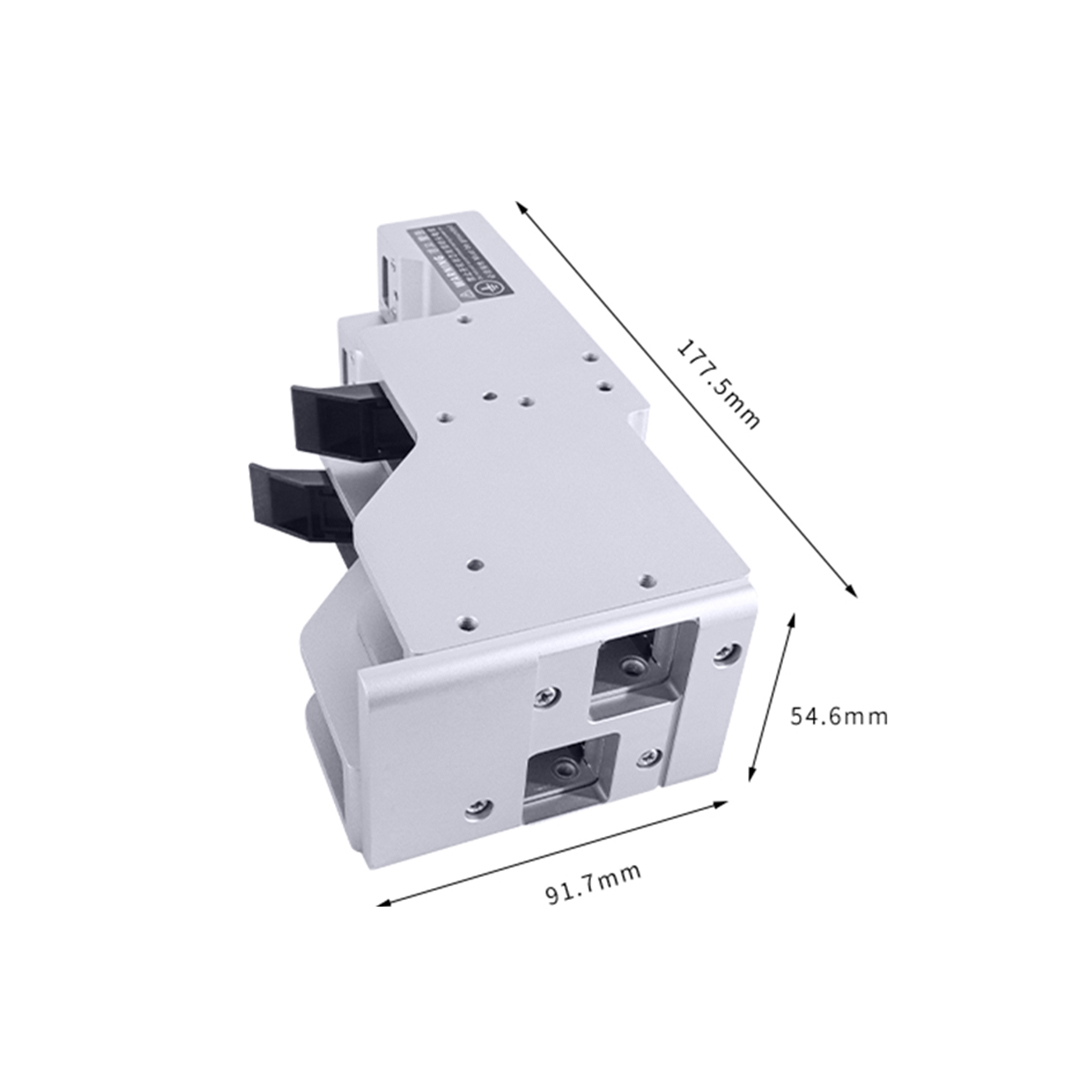

Controller: 192x113x37.6mm；Printhead: 177.5×91.7×54.6mm
Support language:
Supports more than 40 national and regional languages (Chinese/English/Arabic/Russian/French/Vietnamese/Korean, etc.)
Main hardware:
Cortex-A7 1.2G dual-core processor, FPGA algorithm acceleration chipset
